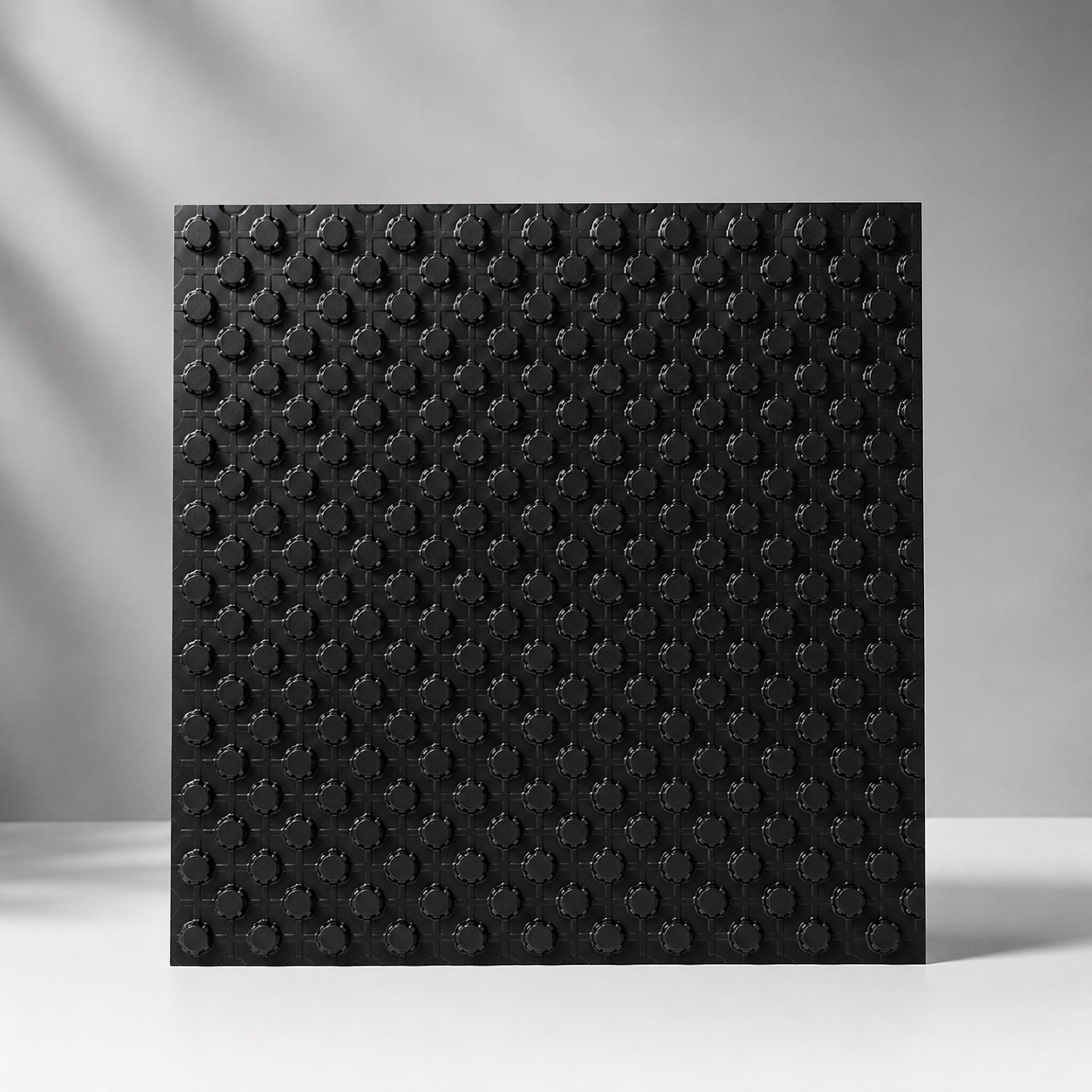

Castellated Panels
Highly flexible pipe layout system for optimised heat distribution

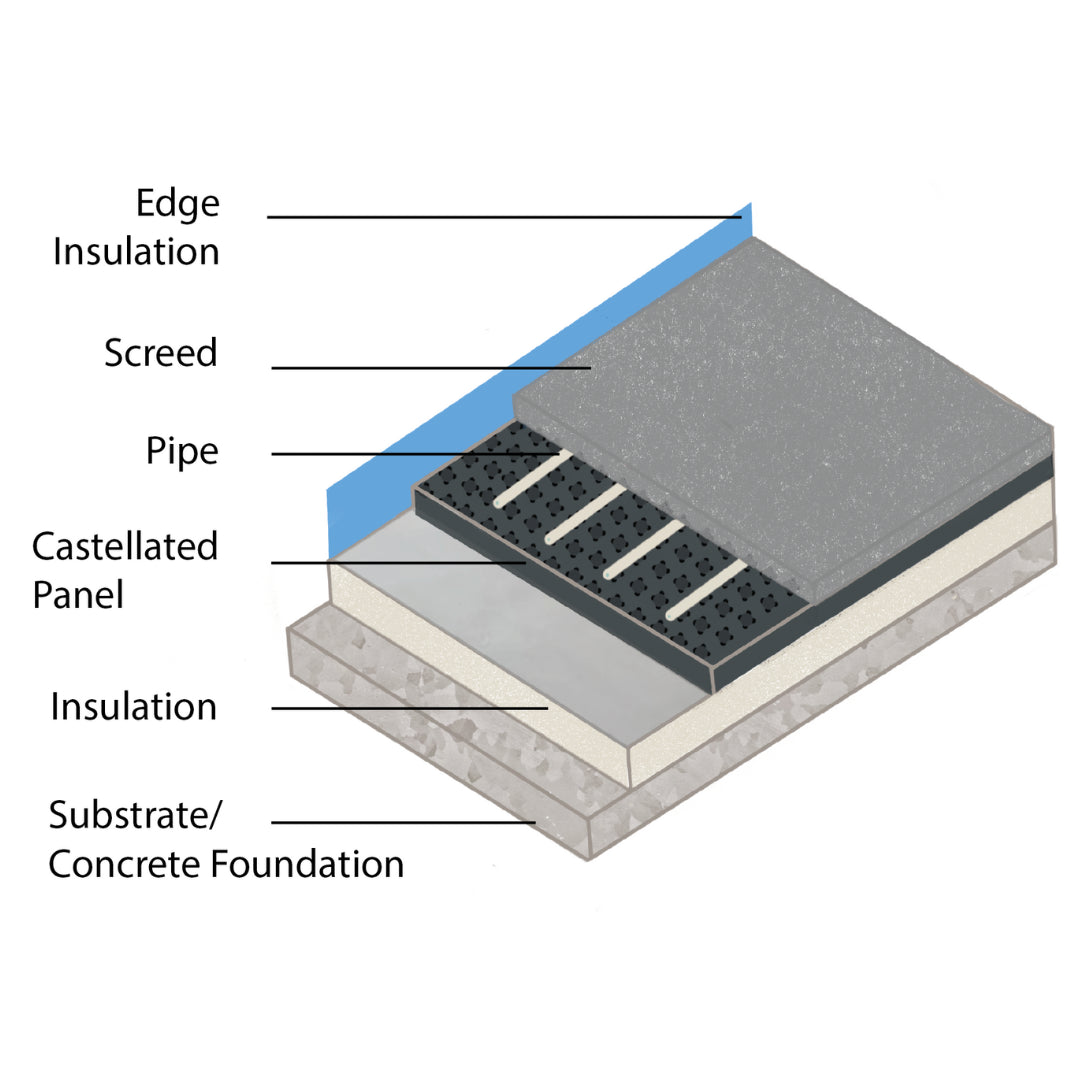

Castellated panels offer a highly flexible tray system designed for screeded underfloor heating applications, providing a fast and reliable installation process across a wide range of project types.
The lightweight panels allow for quick installation while ensuring accurate positioning and fixing of underfloor heating pipes. This precise pipe spacing helps deliver consistent and even heat distribution throughout the floor.
Maximum flexibility for different heat sources
Castellated trays can be easily cut to fit any room shape and interlocked to form a continuous grid system. Pipes can be installed at multiples of 50mm centres, offering maximum flexibility for different heat sources including heat pumps and traditional boiler systems.
Available with or without insulation, and with options for film or film with adhesive, the system can be tailored to suit specific project requirements.
Benefits
- Quick and efficient installation
- Very low-profile system
- Flexible pipe spacing at multiples of 50mm
- Ensures even heat distribution
- Pipes fully encapsulated within screed
- Options with or without insulation
- Available with film or film and adhesive
