Screed Panels
Fast-to-install dry system with minimal floor height impact
Our screed panels are manufactured from reinforced gypsum board, providing a durable and highly efficient solution for underfloor heating systems in both new build and renovation projects.

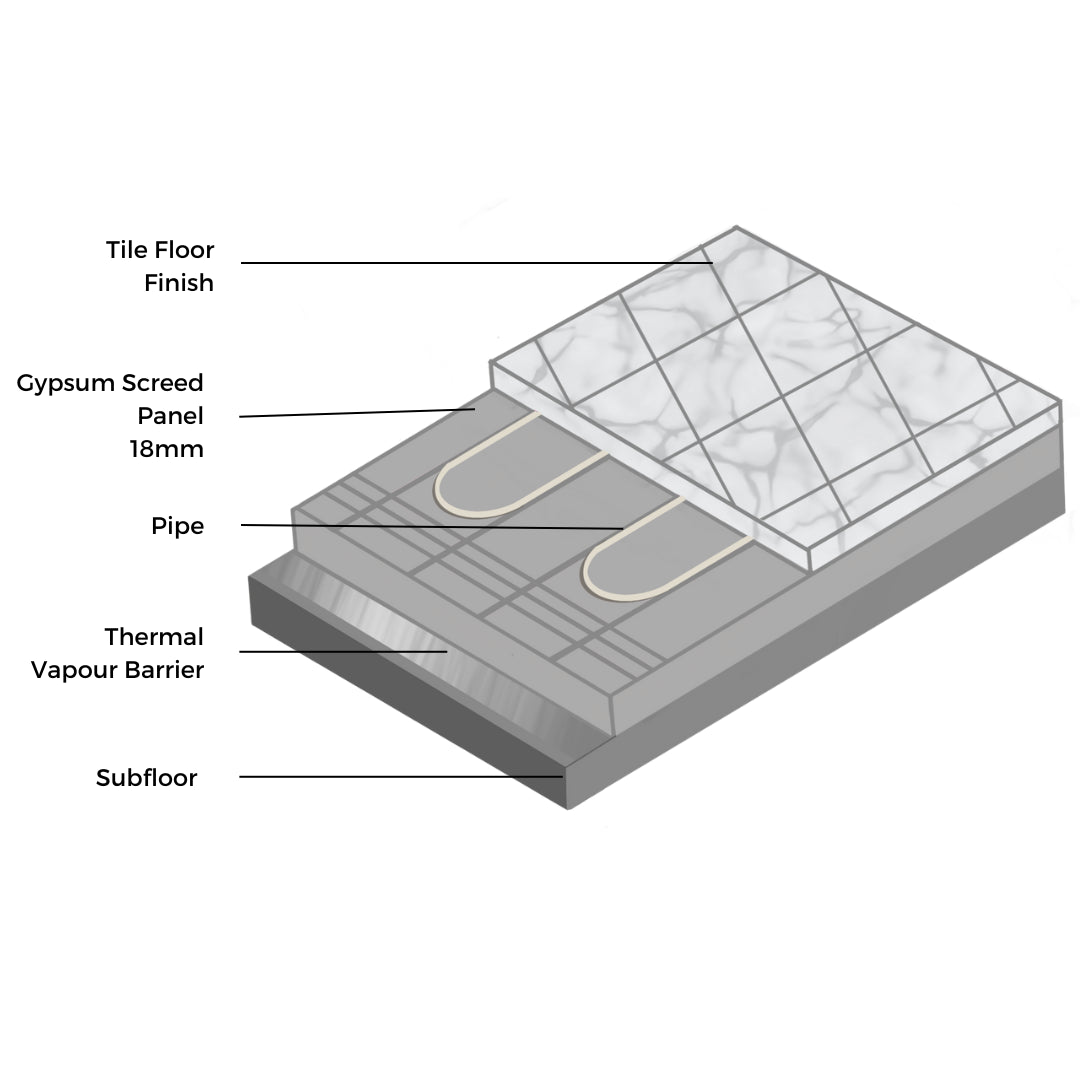

Designed as a pre-routed dry screed overlay system, these panels allow for a completely dry installation, enabling final floor finishes to be installed in as little as 24 hours.
With a low-profile design of just 18mm, they minimise the impact on floor height while remaining suitable for a wide range of floor finishes.
Multidirectional Routing Design

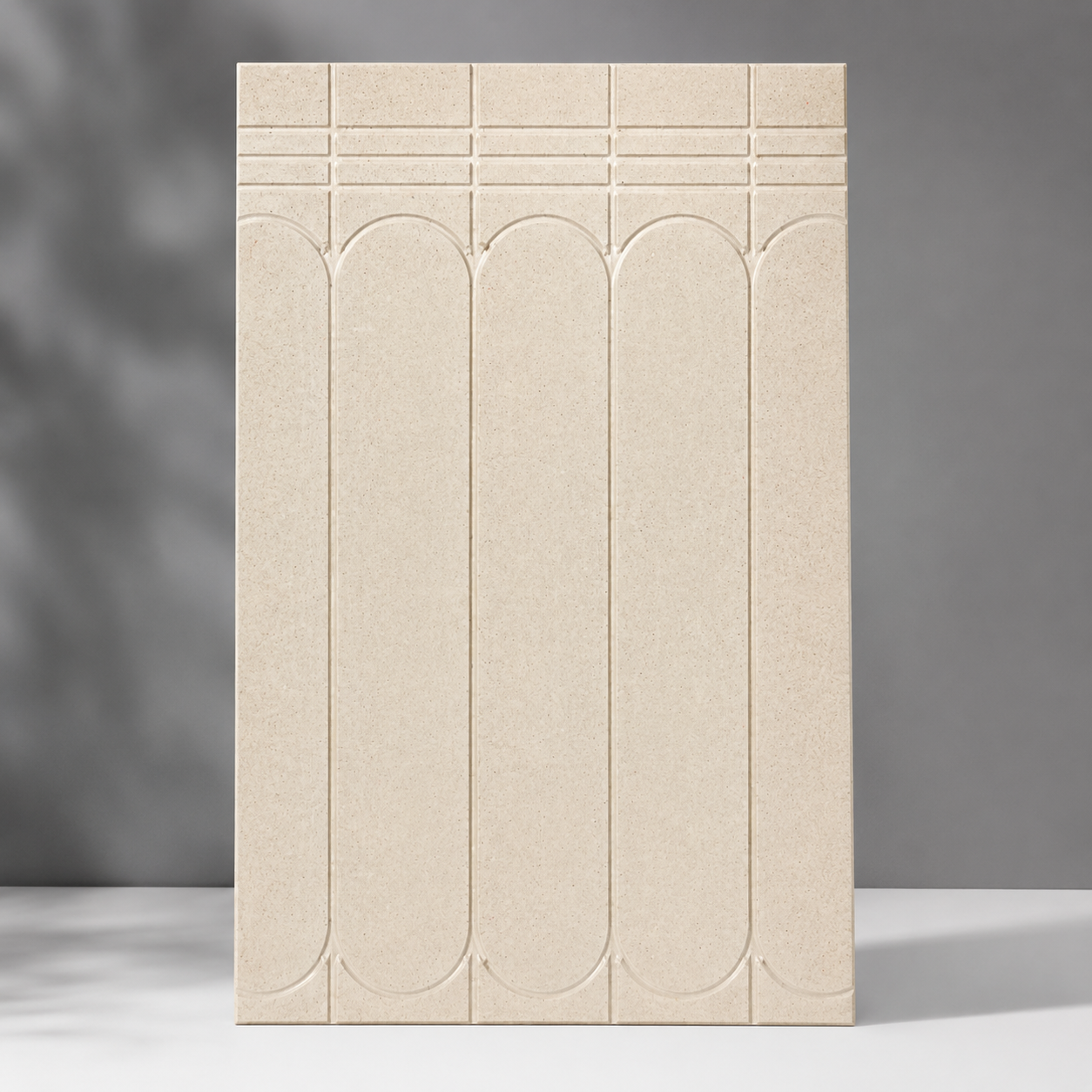

Each panel measures 1200mm x 600mm x 18mm and is precision-routed on one face to accommodate 12mm diameter underfloor heating pipes, including radius returns for smooth pipe installation.
The multidirectional routing design allows for flexible pipe layouts, ensuring efficient heat distribution and optimal system performance.
Benefits
- Highly thermally conductive for efficient heat transfer
- Even and consistent floor heating
- Designed for 12mm pipes at 150mm centres
- Pre-routed multidirectional panels for flexible layouts
- Fast and simple pipe installation
- Helps achieve optimal room temperatures
