Cement Faced Boards
Strong, low-profile boards designed for direct tile and floor instalation
Our cement faced boards provide a robust and low-profile solution for underfloor heating systems, combining insulation and structural performance in a single board.
Featuring durable cement coatings on both faces, these boards are designed to support the direct application of tiles or wood flooring (with underlay), reducing installation steps and improving overall efficiency.

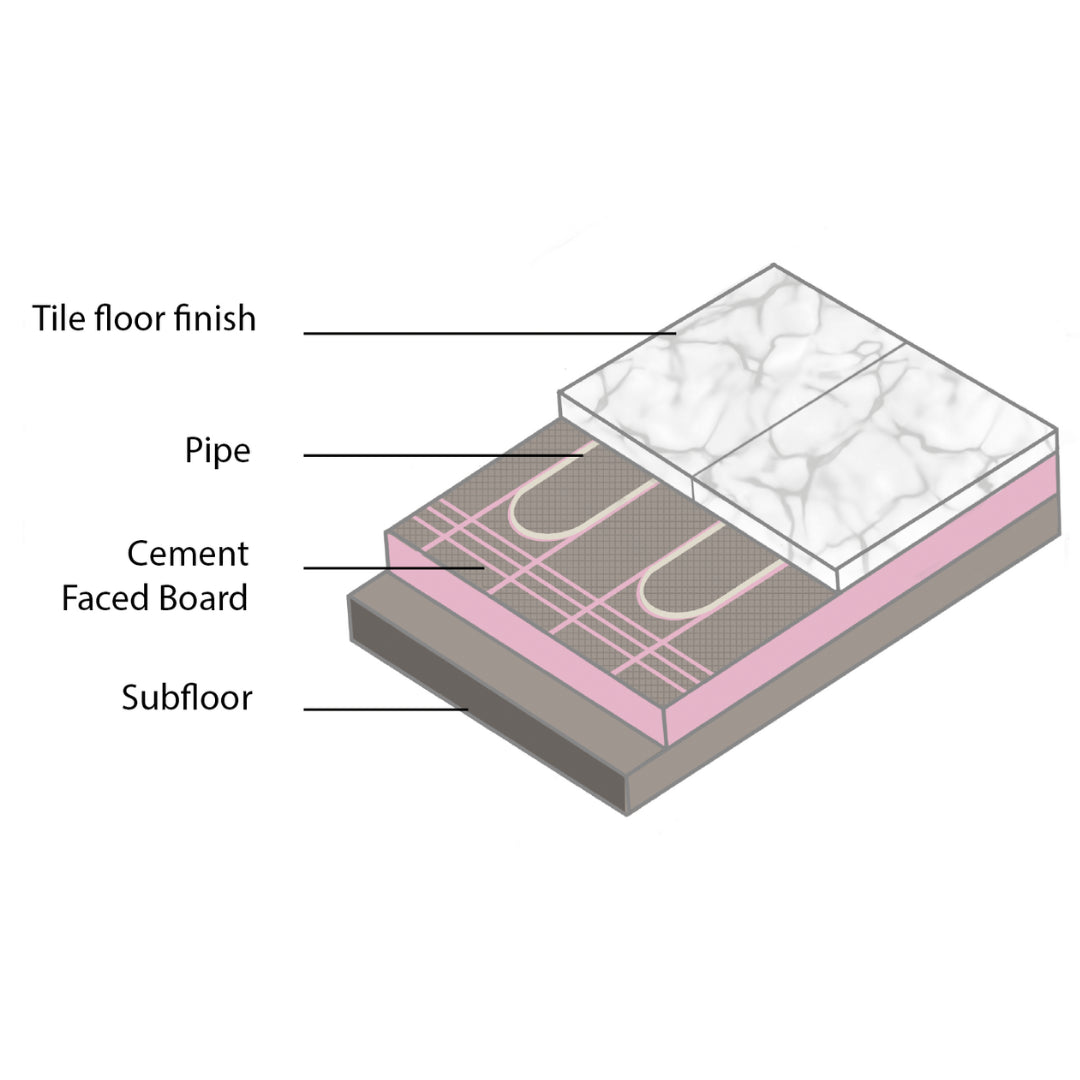

Suitable for installation over both timber and concrete subfloors, they offer a versatile solution for a wide range of projects.
Low-Profile Design

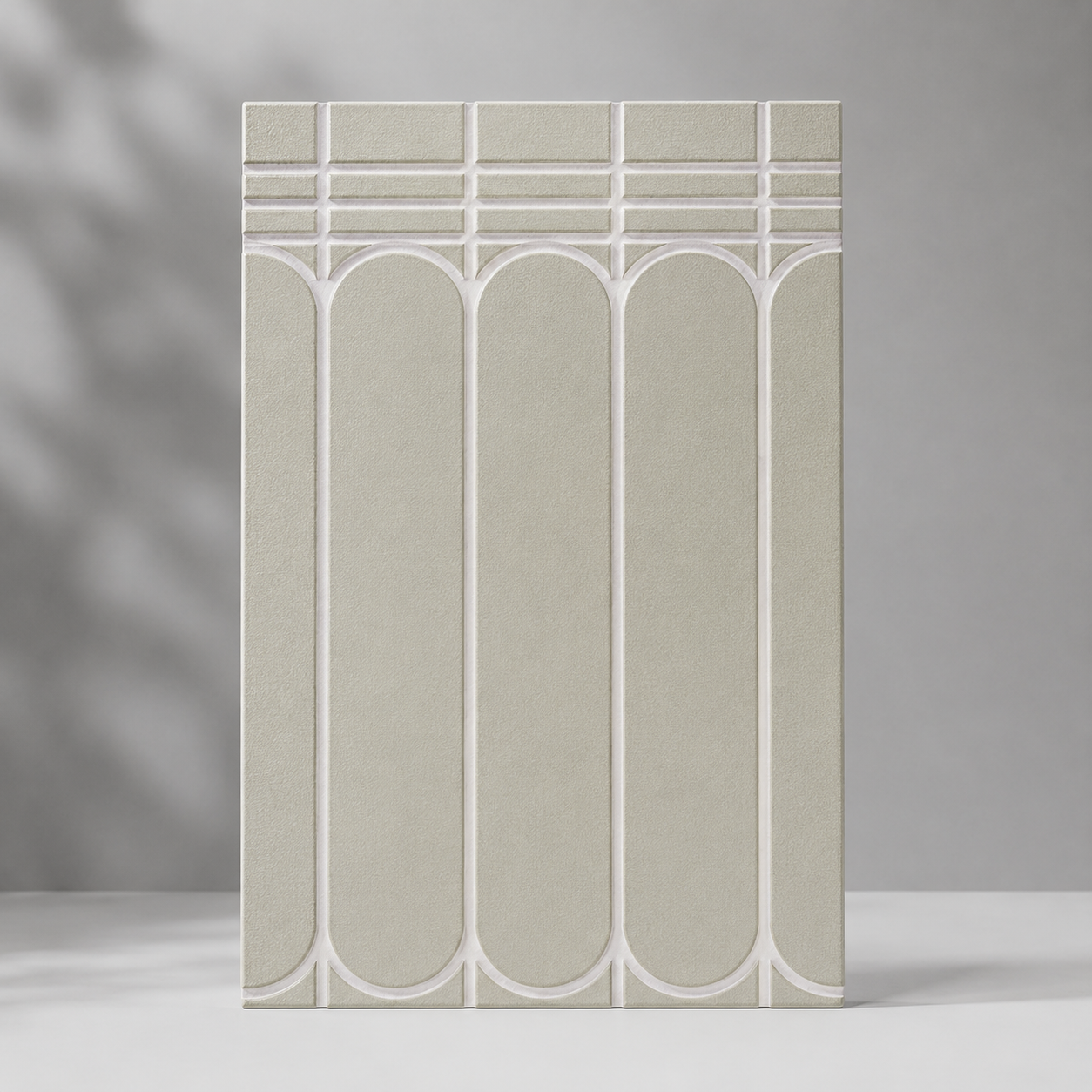

Each board measures 1200mm x 600mm x 20mm and is fully grooved on one face to accommodate either 12mm or 16mm diameter underfloor heating pipes.
With high compressive strength and a low-profile design, these boards deliver reliable performance while maintaining minimal impact on floor height.
Benefits
- High compressive strength of 300kPa
- Low-profile system at just 20mm thick
0.72m² coverage per board - Suitable for direct tiling
- Compatible with 12mm or 16mm pipes
- Lightweight and easy to install
- Designed for 150mm pipe centres
